Product Details:
|
| High Light: | 200kg Capacity Silver Refining Machine,fully automatic 200kg Capacity Silver Electrolysis,200kg Capacity silver electrolysis machine |
||
|---|---|---|---|

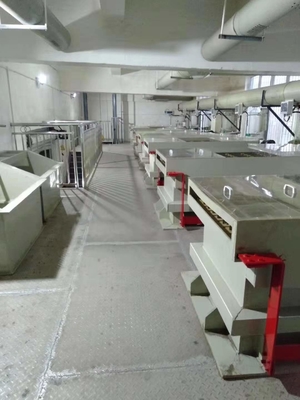

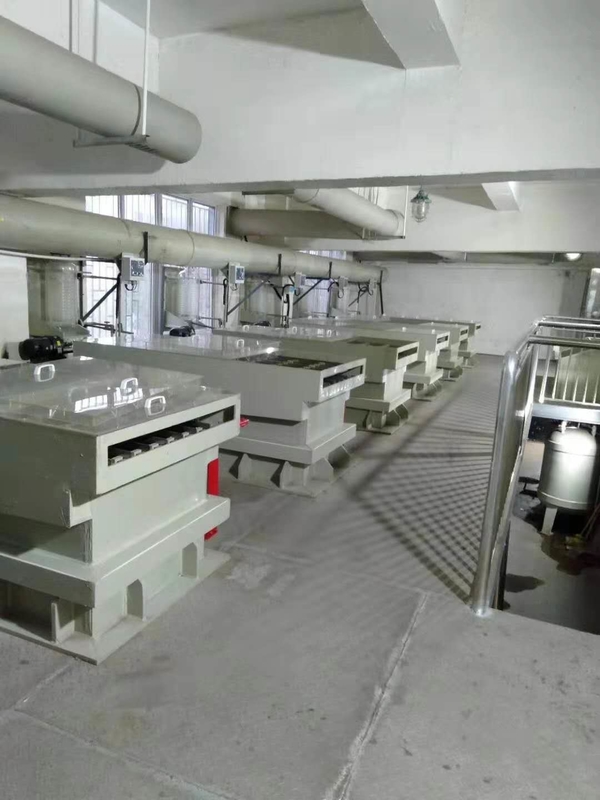

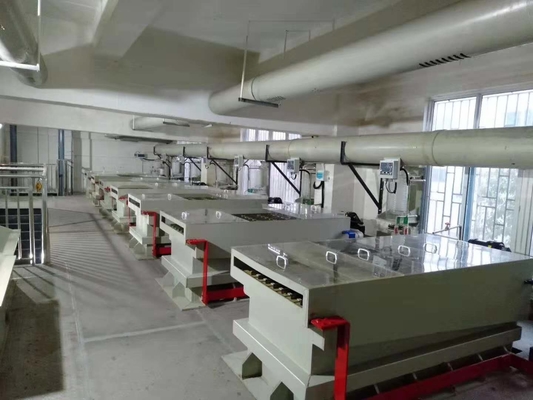

200 kg capacity silver refining machine
silver refining process
| no | Name | description | Quantity |
| 1 Complete set of silver electrolysis equipment | Silver electrolytic tank |
-Maximum output: 200kg silver / day -Weight: About 100kg |
1set |
| Exhaust gas absorption hood | Exhaust gas absorption hood | 1set | |
| Automatic powder scraping device | Mechanical powder scraping device | 1set | |
| Rectifier power supply |
-Rated power: 20kw -Specification: 2000a10v -High frequency power supply: air cooled -Size: 800 * 500 * 800mm -Weight: About 40kg |
1set | |
| Anode mould |
-Material: Cast Iron -Matched with electrolytic cell -6 anode molds -Mould car |
1set | |
| Silver ingot mould |
-6 anode molds -Mould car |
1set | |
| Copper bar | - 规格: 100*10mm | 10m | |
| Electrolytic flue gas condensing device |
-Specification: 2.5m ² -Material: glass, PP support -Bearing pressure: - 0.1MPa -Weight: About 40kg |
1 | |
| cooling-water machine |
-Specification: 5HP -Refrigerating capacity: 7216kcal / h -Power: 4 kW -Cooling mode: air cooling -Size: 950 * 550 * 1350mm -Weight: about 130kg |
1 | |
| Silver electrolyte circulating tank |
-Size: 1100 * 1100 * 1100mm -Material: PPH -Thickness: ≥ 10mm -Weight: About 50kg |
1 | |
| Electrolyte circulating pump |
-Model: imc40-25-125ft -Power: 1.1kw -Material: steel lined PTFE -Flow: 6.3m ³/ h -Lift: 18m -Size: 50 * 400 * 450mm -Weight: about 130kg |
1 | |
| 2 Electrolyte making equipment | Titanium kettle |
Capacity: 200 litres -Power: heating power 10 kW; Mixing power 1.1kw (total power 11.1kw) -Structure: single layer, electric heating -Titanium heating tube, thermocouple, distribution box |
1 |
| Filter disc |
Capacity: 200 litres -Power: heating power 10 kW; Mixing power 1.1kw (total power 11.1kw) -Structure: single layer, electric heating -Titanium heating tube, thermocouple, distribution box |
1 | |
| High level tank |
Capacity: 300 litres -For storing electrolyte |
1 | |
| 3 Silver powder cleaning equipment | Silver powder car |
Size: 1000 * 800 * 600mm -Material: 304 stainless steel -Weight: 80kg |
1 |
| No load pump |
Model: mk-50032nbh-cch -Power: 0.75 kw |
1 | |
| Silver powder washing solution storage tank |
-Size: 1000 * 1000 * 1000mm -Material: PPH -Thickness: ≥ 10mm -Weight: About 40kg |
1 | |
| transfer pump |
-Model: imc40-25-125ft -Power: 1.1kw |
1 | |
| 阳极袋洗涤槽Anode bag washing tank |
- Size: 1000 * 800 * 1000mm -Material: PPH -Thickness: ≥ 10mm -Weight: About 40kg |
1 | |
| 阳极泥滤盘Anode slime filter disc |
-Size: φ eight hundred × 1200mm -Material: PPH -Thickness: ≥ 12mm -Weight: About 60kg |
1 | |
| Discharge pump |
-Model: imc40-25-125ft -Power: 1.1kw |
1 | |
| Silver powder furnace |
-Model: ct-c-0 -Power: 11 kw -One drying car and 24 trays -Size: 1550 * 1000 * 2050mm -Weight: 800 kg |
1 | |
| Flue gas pipe fittings | φ100~200 | 1 | |
| 4 others | Liquid pipe fittings |
- φ 15~40 -From reactor to silver powder cleaning |
1 |
| Distribution box / cable | - Distribution box / cable | 1 | |
| Vacuum device |
-Power: 7.5kw -Gas volume: 280M3 / h -Size: 2150 * 1050 * 1140mm -Weight: About 150kg |
1 |
