Precious Metal Gold Purifying Machine By Electrolysis

Precious Metal Gold Purifying Machine By Electrolysis
Precious Metal Gold Purifying Machine By Electrolysis Precious Metal Gold Purifying Machine By Electrolysis Precious Metal Gold Purifying Machine By Electrolysis

Large Image :  Precious Metal Gold Purifying Machine By Electrolysis

Product Details:
Place of Origin: wuxi
Brand Name: gremet
Certification: CE
Model Number: 3 kg
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiate
Packaging Details: plywood case
Delivery Time: 30 days
Supply Ability: 100-200 sets

Precious Metal Gold Purifying Machine By Electrolysis

Description
High Light:

Gold Purifying Machine By Electrolysis

,

Precious Metal Gold Purifying Machine

,

Precious Metal Gold Electrolysis Machine

precious metal gold purify by electrolysis method



Precious Metal Gold Purifying Machine By Electrolysis 0

no type  equipment name  model material unit  quantity
1

gold electrolysis

g m-15



voltage 380v,50hz

Gold dissolving kettle

100L

single-layer kettle, electric heating

titanium set 1

Chloroauric acid filter

Bag type filter

PPH set 1

Chloroauric acid filter

Precision filter

PPH set 1

Chloroauric acid high level tank

V=100L Glass set 1
Gold reduction kettle 100L rotatable PPH set 1
Gold reduction supernatant high level tank V=100L Glass set 1
Sponge gold cleaning filter 可拆卸removable PPH set 1
Washer fluid high level tank V=100L Glass set 1
condenser Flue gas condensation system Glass set 1
Cabinet support   PPH set 1
2



Waste gas treatment

Waste gas treatment unit



Including two-stage spray

PPH set 1


The company specializes in new technology research and development, new equipment research and development, technology promotion, production process and workshop design of various precious metal smelting, refining and environmental protection, as well as all-round service businesses such as design and manufacturing of various professional non-standard equipment, overall workshop equipment installation, operator training, organization and guidance of trial production








Advantages:

(1) Casting anode plate: the crude gold raw material with 99% gold content is melted into the medium frequency smelting furnace and cast into a gold electrolytic anode plate.

(2) Electrolyte preparation and waste electrolyte recovery: gold electrolyte is prepared by dissolving pure gold in aqua regia and diluting it with hydrochloric acid aqueous solution.

(3) Electrolysis: hang the anode plate into the gold electrolysis cell and start the gold electrolysis equipment for electrolysis.

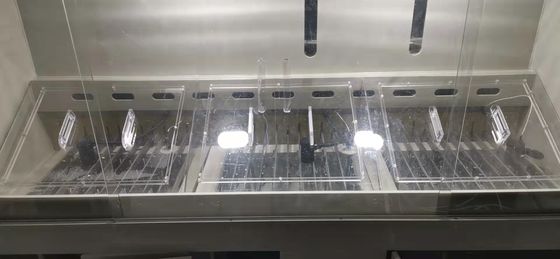

The company's high-efficiency gold electrolysis unit (as shown in the figure) is developed based on years of experience in gold refining projects and customer suggestions. It adopts integrated and integrated design. The whole machine includes a single electrolytic cell, circulating pump, rectifier power supply, automatic electrolyte replenishment system, electrolytic flue gas condensation recovery system, electrolyte temperature, voltage, current The copper bar temperature intelligent monitoring system, the rectifier power supply is closed separately, isolated from the acid gas in the workshop, and has a long service life.

With a number of domestic patents and advanced technology, it has the following advantages:

① The product quality is stable and can meet the gold ingot standard of au99.99 (grade I) of Shanghai Gold Exchange; it can also produce gold ingots with purity of 99.999% according to the special needs of customers;

② Low production cost: about 0.02 yuan / gram gold;

③ The electrolysis adopts AC / DC superimposed power supply, which can effectively inhibit the generation of silver chloride on the gold anode and make the anode plate electrolysis more thorough;

④ High current density electrolysis technology; cathode current density up to 1200A / m2, high production efficiency;

⑤ The electrolytic cell is designed with a transparent closed smoke cover to prevent smoke from escaping, which is easy to operate and beautiful;

⑥ A flue gas condensing device is set. Due to the high temperature (60-70 ℃) required by the gold electrolysis process, the flue gas condensing device can condense the reflux volatile electrolyte to avoid the loss of gold;

The main material of the equipment is high performance polypropylene material, adding anti-aging agent to the material, which greatly prolongs the service life of the equipment. The whole bracket material is PPH, and the corrosion resistance is very strong; the cathode and anode conductive bar material is titanium coated copper with excellent conductivity.

This set of gold electrolysis unit is designed with PLC automatic operation system, controlled by touch screen, and has the function of electrolytic parameter storage. When the electrolytic voltage, current and copper bar temperature are abnormal, the rectifier power supply can be directly interlocked to stop. The whole set of equipment is simple, safe and convenient.
