Product Details:
|
Function: | Production Of 1KG Gold Ingots | Material: | Gold Ingot Fully Automatic Production Line |
---|---|---|---|
Gold Ingot Casting Efficiency: | 50KG/1 Hour |
Automatic production of gold ingots
Technical Parameter
1.Equipment name and purpose

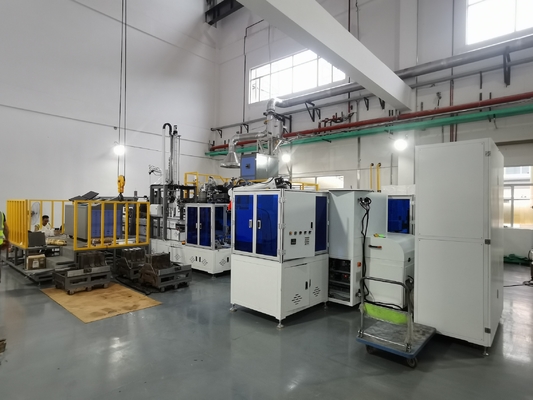

Equipment Name: Gold Ingot Fully Automatic Production Line
Equipment usage: Production of 1KG gold ingots
The product quality surface is smooth, flat, without holes, shrinkage patterns, cracks, rounded edges without defects, and the physical specifications, appearance, and weight of 1kg gold ingots meet the standards of Shanghai Gold Exchange and Shanghai Futures Exchange
2.Equipment Configuration List
No | project | Specifications, models, and parameters | notes |
1 | Automatic dissolution of ingots | JD1KG | |
2 | Crystallization cooling system | JD1KG | |
3 | Automatic conveying system | JD1KG | |
4 | Gold ingot cleaning, scanning, coding, stamping, and weighing system | JD1KG |
3.Construction auxiliary condition configuration table and waterway diagram
Serial number | name | quantity | Power | Weight |
one | Gold ingot production line | 1 set | 120KW per unit | About 3.5T |
two | Gold ingot cleaning, scanning, coding, stamping logo, gold ingot weighing, gold ingot palletizing | 1 unit | 1KW per unit | About 2T |
Cooling system | ||||
No | name | quantity | Power | weight |
1 | Ice water machine air-cooled type | 1 set | 22KW | 400KG |
Compressor gas 0.6mpa -0.8mpa caliber DN25 Nitrogen 999.9-999.9 maximum consumption per hour, 10 cubic meters Pressure 2.5-3.5kg |
1. The water, electricity, and gas pipes inside the equipment shall be provided and installed by Party B in the equipment,
The first party shall prepare the external water, electricity, and gas pipes for the equipment.
2. The first party shall meet the requirements for the equipment entry channel: the maximum size of a single piece (width 3 meters * height 3 meters)
4. Equipment technical requirements and process flow
(Description of Process Flow for Gold Ingot Production Line)
4.1)Process description of gold ingot casting system:

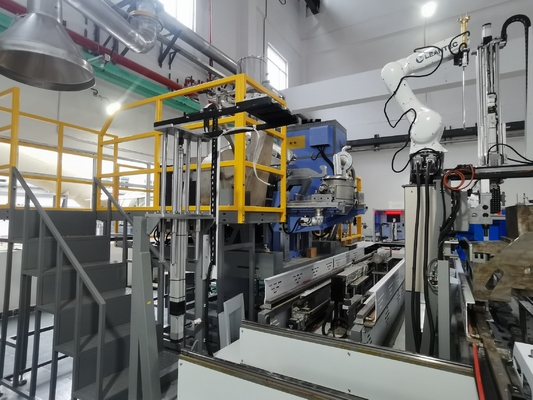

The gold beads are manually weighed and placed in storage warehouses (8 storage devices). The storage devices automatically feed the gold beads into graphite molds. Vacuum heating and melting melt the gold beads into liquid gold. Vacuum crystallization molding is carried out. Gas protection cooling molds are used to push out the molds. The molds are automatically covered and the finished gold ingots are picked up by a robotic arm..
4.2)Process description for gold ingot cleaning, appearance scanning, coding, logo stamping, weighing, and palletizing system:

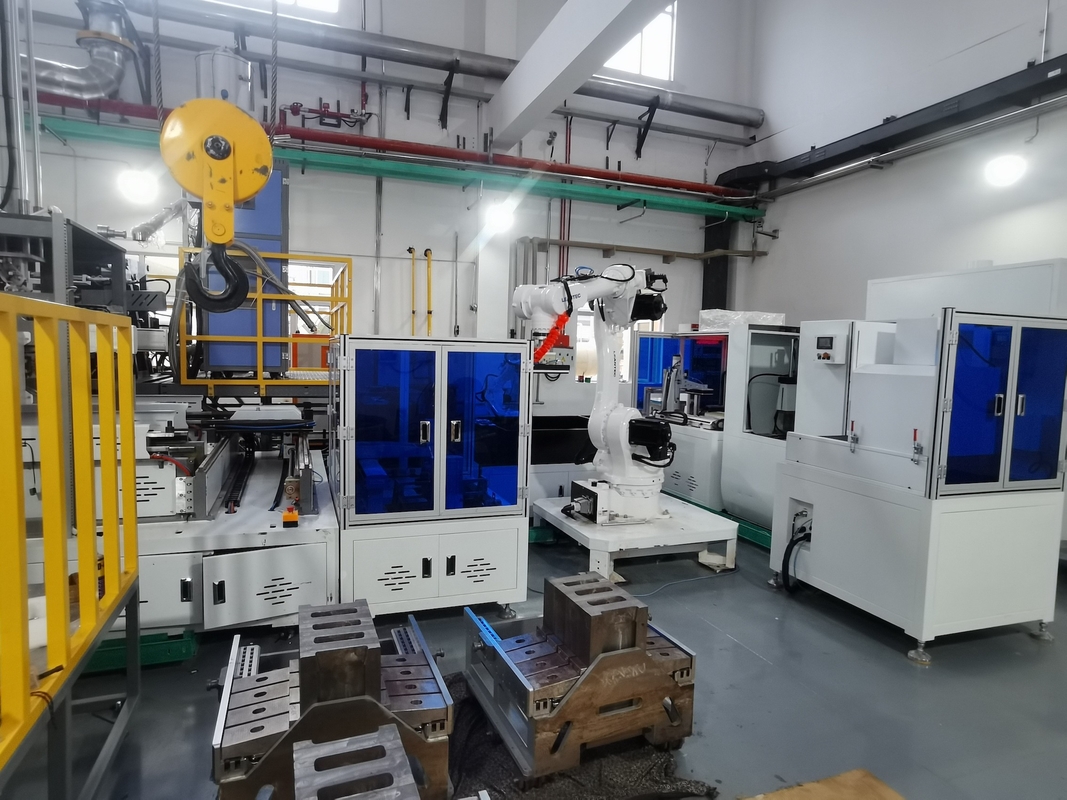

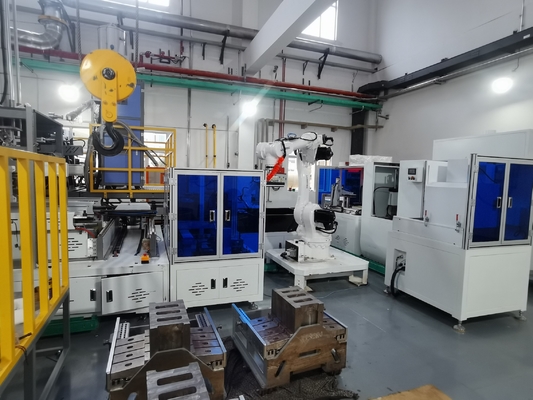

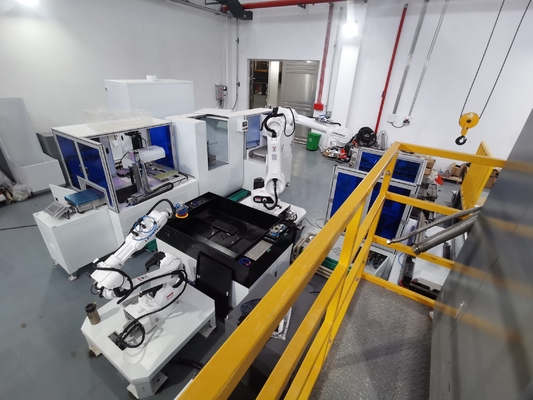

The finished gold ingots are transported to the cleaning station by a robotic arm - surface cleaning - the robotic arm sends the gold ingots to the drying device - drying is completed and the appearance is scanned - qualified products enter the pneumatic marking coding (or laser marking) - marking is completed and stamped LOGO - gold ingot weighing - gold ingot stacking, qualified products are transported to the pallet (unqualified products are picked up by the robotic arm and placed in the unqualified product station.
5. 1,Gold ingot casting system
Power Supply | 380V/50Hz/three-phase five wire |
Gold ingot casting efficiency |
50KG/1 hour |
Equipment dimensions | Approximately 6 meters (L) X 3 meters (W) X 1.8 meters (H) |
Flameless tunnel furnace |
It includes functions such as mold loading, conveying, heating (melting, nitrogen protection), crystallization, cooling, demolding, and mold placement, as well as supporting power supply and control cabinet (including touch PLC display screen). The temperature of the output ingot is less than 40C.
|
Gold ingot standard | The surface of the cast gold ingot is smooth, flat, without holes, shrinkage patterns, cracks, and rounded edges without defects. The product complies with GB/T 4135- The appearance standards of 2016 and the appearance requirements of LBMA London Gold and Silver Exchange can meet the registration requirements of the London Stock Exchange on a daily basis. |
Loading and unloading system for molds |
Using modules to transport and place molds, operated by an electronic pneumatic system with suction cups and angle rotating robotic arms at the mold station. The mold medium is high-purity graphite (During the automatic operation of the machine, one operator is required.) (The operator only needs to add gold beads at the machine workstation and remove the stacked gold ingots) |
Automation requirements | ) |
Equipment control and protection | PLC and touch screen control, including equipment protection against overheating, overvoltage, underwater, and automatic protection against misoperation and personal injury. |
The rack is made of (baked anti-corrosion paint) material | |
Corresponding intermediate frequency furnace and gold ingot crystallization cooling system |
5.2 Gold ingot cleaning and weighing coding system
Power supply 380V/50Hz/three-phase five wire | |
The production capacity of gold ingots is 50KG/1h, and the weight of gold ingots is 1kg. A gold ingot weighing and coding device is used Must have the ability to hold 50 1kg gold ingots within 1 hour |
|
stack |
Use imported sponge suction cups to suck up gold ingots, ensuring that the surface of the ingots is scratch free (Single action beat time<20s) |
The load of the robotic arm is greater than 6kg, and it can stably achieve multi station grasping and placing of gold ingots |
|
Coding system | Printing speed 50-150MM/S |
Cleaning system | Clean the six sides of the gold ingot |
The complete set of equipment needs to be limited to the designated area | 3000*1800*1800MM(L*W*H) |
5.3,List of complete components for the host
NO |
Name of the complete host and standard accessories | Quantity |
1 | Melting ingot system and automatic conveying system | 1 set |
2 | monitoring system | 1 set |
3 | PLC electrical control system | 1 set |
4 | water cooling system | 1 set |
5 | Gold ingots and cleaning, polishing, and coding | 1 set |
6 | Dissolved Crystallization Tunnel Furnace | 1 set |
7 | Automatic demolding system | 1 set |
8 | Gold ingot cleaning and polishing system | 1 set |
9 | CCD visual inspection system | 1 set |
10 | Automatic coding marking system | 1 set |
11 | Accessories and specialized tools | 1 set |
12 | Installation, debugging, and training fees | 1 set |
5. 4,spare parts and vulnerable parts list with machine)
No | name | Specification and model | unit |
Quantity
|
Belonging part |
1 | Ingot mold | 1KG | 套 | 15 | Ingot casting system |
2 | Interval block | customized | pcs | 15 | Ingot casting system |
3
|
sucker | routine | pcs | 10 | conveying system |
4 | Gold ingot storage tray | customized | pcs | 4 | Storage system |
5.5,Control system and power supply
1)Power supply mode: three-phase five wire system
Schneider, Mitsubishi, Omron, Chint and other brands (PLC adopts Mitsubishi Q series from Japan)
Board material: 1.5 iron plate+baked anti rust, anti-corrosion paint, aluminum, 304 stainless steel material
Dust environment: Explosion proof cabinet (nationally licensed production)
Install ventilation and heat dissipation system to ensure that the temperature rise inside the control cabinet is less than 30 ° C
4)The operating equipment needs to be equipped with sufficient emergency stop and power-off buttons and power switches; Configure the power indicator light
The start, stop, or other function buttons are equipped with indicator lights that comply with national safety color requirements;
Systems with control requirements such as temperature, pressure, and flow rate need to be equipped with corresponding instruments;
All parts that require protection must be equipped with protective devices and electrical interlocks.
When using PLC or other system controls, the program is open.
