Product Details:
|
| Raw Material: | Silver Scrap Refinery With A Silver Content Of 92% Or More And Copper 8% | Refining Capacity: | 400kg Per Day |
|---|---|---|---|
| Refinery Method: | Silver Electrolysis | Project Country: | Thailand |
a set of analytical equipment for the analysis of refined silver 99.99,
And silver scrap with a silver content of 92% or more and Copper 8%.
| Name | Specification | material | Unit | quantity | Power kw | subtotal kw | notes |
| Electronic platform scale | 50kg-0.1g | combination |
set | 1 | |||
| truck | 800*600*500 | 304 | set | 1 | |||
| Electric hoist | 1t | combination | set | 1 | 2.2 | 2.2 | |
| Smoke hood | equipped with Intermediate frequency smelting furnace |
304 | pcs | 1 | |||
| Intermediate frequency smelting furnace | 120kg/ furnace | combination | set | 1 | 160 | 160 | |
| cooling tower | 25T | combination |
set | 1 | 5.2 | 5.2 | Intermediate frequency furnace cooling, electrolytic cell copper bar cooling |
| Melting crucible | 120# | graphite | set | 10 | |||
| Electric hoist | 0.5t | combination |
set | 1 | 1.1 | 1.1 | Bring fast and slow |
| Crucible fixture | carbon steel | carbon steel |
set | 1 | |||
| Pliers | length 600 | carbon steel |
pcs | 2 | |||
| Cooling water tank | 500*400*300 | 304 | set | 1 | |||
| Anode mold car | 9 molds 1 ca | casting iron |
set | 1 | |||
| Bench drill | Ø10 Anode plate hook hole | combination |
set | 1 | 0.5 | 0.5 | |
| truck | 800*600*500 | combination | set | 2 | |||
| Vibration sieve | 2-layer sieve plate. 1 layer sieve: 2.5mm hole. 2nd layer sieve: 2.0mm hole | combination | set | 1 | 1.5 | 1.5 | Silver particle screening |

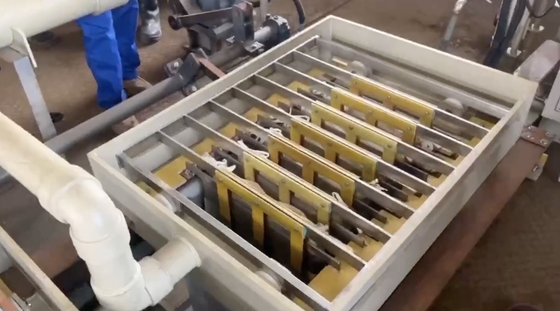

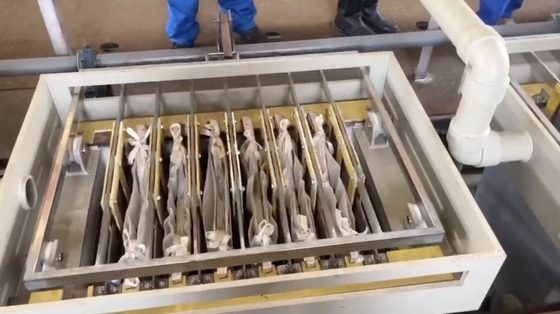

| Silver electrolytic cell | JQ-YDJ300/Y-3 | combination |
set | 1 | |||
| Silver electrolytic cell | JQ-YDJ100/Y | combination |
set | 1 | |||
| Closed smoke hood | 300kg silver electrolytic cell matching | PC | set | 1 | |||
| Closed smoke hood | 100kg silver electrolytic cell matching | PC | set | 1 | |||
| Automatic silver scraping system | 300kg silver electrolytic cell matching | combination | set | 1 | |||
| Automatic silver scraping system | 100kg silver electrolytic cell matching | combination |
set | 1 | |||
| 300kg Silver electrolysis rectifier power supply | 2000A/15V | combination |
set | 1 | 30 | 30 | |
| 100kg Silver electrolysis rectifier power supply | 2000A/4V | combination |
set | 1 | 8 | 8 | |
| 300kg electrolytic cell main copper bar 300kg | 100*12 | copper |
set | 1 | |||
| 300kg electrolytic cell copper bar cooling system300kg | combination |
set | 1 | ||||
| 100kg electrolytic cell main copper bar100kg | 100*12 | copper |
set | 1 | |||
| 100kg electrolytic cell copper bar cooling system100kg | combination |
set | 1 | ||||
| 300kg silver electrolyte circulation tank300kg | 2.5m³,With cooling coils | 304 | pcs | 1 | |||
| 300kg silver electrolyte circulation pump300kg | flow:6.3m³/h,lift:17.5m | Steel lined PTFE | set | 1 | 1.1 | 1.1 | |
| 100kg silver electrolyte circulation tank100kg | 1000*800*1000,With cooling coils | 304 | pcs | 1 | |||
| 100kg silver electrolyte circulation pump100kg | flow:3.2m³/h,lift:20m | Steel lined PTFE | set | 1 | 0.75 | 0.75 | |
| solid-liquid separator | equipped with silver electrolysis cell | pph/ | pcs | 2 | |||
| 300kg silver electrolytic cell discharge valve300kg | DN125 | 304 | pcs | 1 | |||
| 100kg silver electrolytic cell discharge valve100kg | DN100 | 304 | pcs | 1 | |||
| Silver powder cleaning and drying machine | 300kg/ batch | 304 | set | 1 | 7.5 | 7.5 | |
| Silver powder cleaning and drying machine | 100kg/ batch | 304 | set | 1 | 5.5 | 5.5 | |
| Discharge valve | DN125 | 304 | pcs | 1 | |||
| Discharge valve | DN100 | 304 | pcs | 1 | |||
| Bag filter | combination | set | 1 | ||||
| Pneumatic diaphragm pump | flow10m³/h,lift:60m | engineering plastic | set | 1 | 0.1 | 0.1 | |
| Silver powder feeder truck | 800*600*500 | 304 | pcs | 1 | |||
| Wash solution storage tank | 0.5m³,With steam heating coil | 304 | pcs | 3 | |||
| Booster conveying pump | flow4m³/h,lift:27m | combination |
set | 3 | 1.1 | 3.3 | |
| Silver containing waste liquid storage tank | 2m³ | PPH | pcs | 1 | |||
| Washing liquid delivery pump | flow:3.2m³/h,lift:20m | Steel lined PTFE |
set | 1 | 0.75 | 0.75 | |
| Anode bag washing tank | 1380*980*800 | 304 | pcs | 2 | |||
| Anode mud filter disc | φ800*1200 | PPH | pcs | 1 | |||
| Delivery pump | flow:6.3m³/h,lift:17.5m | Steel lined PTFE |
set | 1 | 1.1 | 1.1 | |
| Waste liquid storage tank | 2m³ | PPH | pcs | 1 | |||
| Delivery pump | flow:6.3m³/h,lift:17.5m | Steel lined PTFE | set | 1 | 1.1 | 1.1 | |
| Nitric acid storage tank | 100L | 316L | pcs | 1 | 68% nitric acid temporarily stored 68% |
||
| Pure water storage tank | 300L | PPH | pcs | 1 | Pure water temporary storage |
||
| condenser | 2×2.5㎡ | combination |
set | 1 | Electrolyte preparation device flue gas cooling | ||
| Liquid making/anode mud treatment reactor | 200L | titanium |
set | 1 | 1.5 | 1.5 | Preparation of electrolyte and treatment of anode mud |
| Vacuum filter disc | φ1000*1200 | PPH | pcs | 1 | Electrolyte preparation filtration device | ||
| Pneumatic diaphragm pump | flow10m³/h,lift:60m | engineering plastic |
set | 1 | 0.1 | 0.1 | Electrolyte vacuum transfer tank |
| Filter press | 5㎡ | combination |
set | 1 | 1.1 | 1.1 | Pressure filtration device |
| Pneumatic diaphragm pump | flow10m³/h,lift:60m | engineering plastic |
set | 2 | 0.1 | 0.2 | Pressure filtration liquid delivery pump |
| Precision filter | 2004 | combination |
set | 1 | |||
| Electrolyte purification kettle | 800L | PPH | pcs | 1 | 3 | 3 | |
| Silver chloride precipitation/displacement kettle | 800L | enamel |
pcs | 1 | 4 | 4 | Recovery of Silver from Waste Electrolyte |
| Vacuum filter disc | φ1000*1200 | PPH | pcs | 1 | 1.5 | 1.5 | Silver chloride filtration device |
| Pneumatic diaphragm pump | flow10m³/h,lift:60m | engineering plastic |
set | 1 | 0.1 | 0.1 | Transfer of liquid vacuum pumping after silver chloride precipitation |
| Neutralization reaction tank | 2m³ | fiber glass | set | 1 | Neutralization and precipitation of waste liquid | ||
| Filter press | 10㎡ | combination |
set | 1 | Pressure filtration device | ||
| Pneumatic diaphragm pump | flow10m³/h,lift:60m | engineering plastic | set | 2 | Pressure filtration liquid delivery pump | ||
| Electrolyte storage tank | 2m³ | PPH | pcs | 1 | |||
| Purified electrolyte storage tank | 2m³ | PPH | pcs | 1 | |||
| Waste electrolyte storage tank | 2m³ | PPH | pcs | 1 | |||
| Waste liquid storage tank | 2m³ | PPH | pcs | 1 | Remove the silver from the replacement kettle to replace Pd | ||
| Delivery pump | flow:6.3m³/h,lift:17.5m | Steel lined PTFE |
set | 4 | 1.1 | 4.4 | |
| Neutralization waste liquid storage tank | 5m³ | PPH | pcs | 1 | |||
| Delivery pump | flow:12.5m³/h,lift:17.5m | Steel lined PTFE |
set | 1 | 1.5 | 1.5 | |
| Air compressor | 15kw,1.04-2.6m³/h | combination |
set | 1 | 15 | 15 | Compressed air manufacturing machine |
| Air storage tank | 2m³ | carbon steel |
pcs | 1 | |||
| Chiller (Silver Electrolysis Circulating Tank) | 20Hp | combination |
set | 1 | 20 | 20 | Electrolytic circulation device supporting cold water |
| Chiller (jet tower) | 10Hp | combination | set | 1 | 10 | 10 | Exhaust gas treatment equipment supporting cold water |
| Steam generator | 72kw | combination | set | 1 | 72 | 72 | |
| Pure water unit | 500L/h | combination | set | 1 | 3.15 | 3.15 | |
| Combination jet jet tower | PPH | set | 2 | Equipment for preparing silver electrolyte and treating waste gas generated by silver electrolysis equipment |
|||
| Jet pump | 7.5kw | engineering plastic |
set | 2 | 7.5 | 15 | |
| Jet pum frame | set | 2 | |||||
| Discharge pump | flow:6.3m³/h,lift:17.5m | Steel lined PTFE | set | 1 | 1.1 | 1.1 | |
| Reagent mixing tank | φ1500*1200 | PPH | set | 1 | 3 | 3 | |
| Drug delivery pump | flow:6.3m³/h,lift:17.5m | Steel lined PTFE |
set | 1 | 1.1 | 1.1 | |
| Spray tower | φ1500*4500 | PPH | set | 1 | |||
| Spray pump | 3.75kw | engineering plastic |
set | 1 | 3.75 | 3.75 | |
| Centrifugal fan | air volume 15000m³/h,air pressure 2500pa,frequency conversion |
fiber glass |
set | 1 | 22 | 22 | |
| chimney | 15m | combination |
set | 1 | |||
| Bag dust collector | 80bags | combination |
set | 1 | Used to collect gases escaping from the smelting furnace | ||
| Smoke ducts and fittings | PPH | set | 1 | Smoke ducts, electrolyte delivery, compressed air, steam ducts | |||
| Liquid pipelines and fittings | PPH | set | 1 | ||||
| Installation accessories | combination |
set | 1 | ||||
| distribution | Distribution cabinets, cables, and cable trays | combination |
set | 1 | Distribution cabinets and cable lines for equipment matching | ||
| Packaging and transportation | Export wooden box packaging, domestic transportation and port cost (8 pcs of 40 HQ container) |
set | 1 | containers and steel structures |
|||
| service charge | Design, guide installation, guide debugging |
set | 1 | The buyer is responsible for round-trip travel expenses, accommodation, visas, and other expenses |
